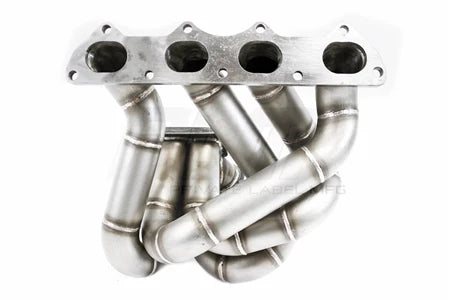

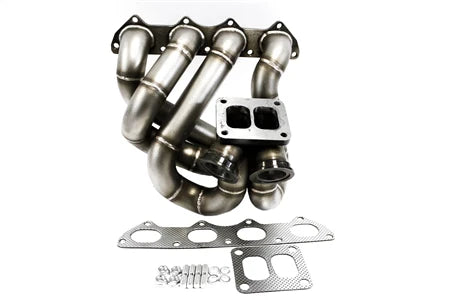

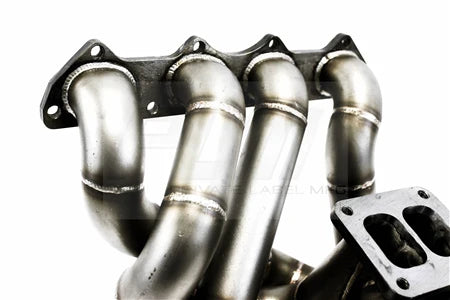

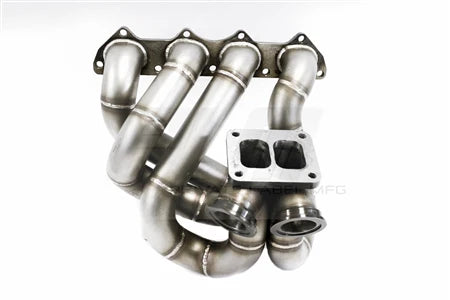

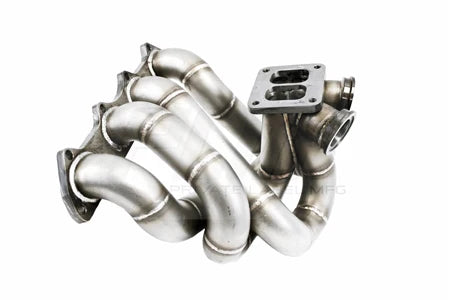

PLM Power Driven T4 Top Mount Turbo Manifold with Dual Wastegates B-Series B16 B18 B20

PLM Power Driven T4 Top Mount Turbo Manifold with Dual Wastegates – B-Series B16 B18 B20

The PLM Power Driven T4 Top Mount Turbo Manifold with Dual Wastegates is designed to spool large turbos quickly, delivering massive midrange gains that carry all the way to redline. Built for high-power applications, this manifold is perfect for setups that demand huge power, huge torque, and fast spool.

Fitment:
1990–2001 Acura Integra models with B-Series engines
1988–1991 Honda CRX models with B-Series engines
1988–2000 Honda Civic models with B-Series engines
1993–1997 Honda Civic Del Sol models with B-Series engines
Honda B-Series engines (B16, B18, B20)

Features:
Made from 304 stainless steel
One-year warranty
CNC machined manifold flanges
Flange thickness is 1/2 inch
Constructed from thick 8 gauge / Schedule 40 pipe

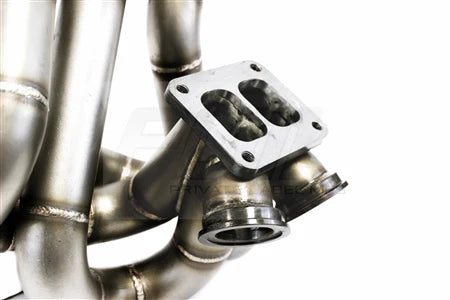

Dual 44mm wastegate flanges
Not compatible with A/C or power steering
Surfaced head flange for a perfect seal
Fully ported low-angle merge collector
Professionally TIG welded and assembled
Raw stainless steel surface finish

Installation Note:
PLM recommends using their downpipes for easier installation. The matching downpipe uses a 4-bolt flange for the turbo connection.
