PLM Power Driven T3 Sidewinder Turbo Manifold K-Series K20 K24

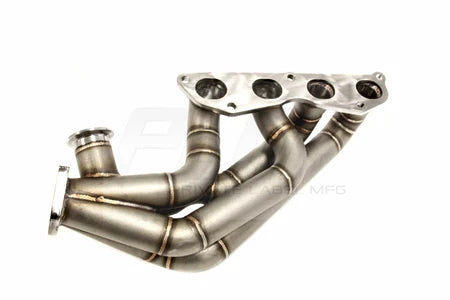

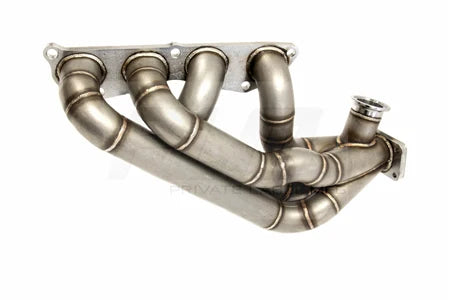

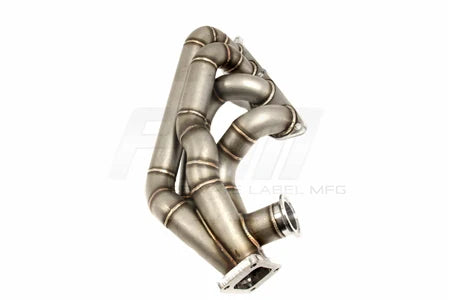

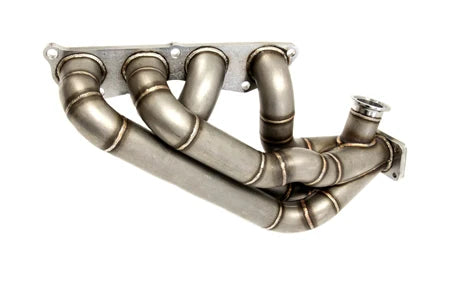

PLM Power Driven T3 Sidewinder Turbo Manifold – K-Series K20 K24

Tuner shops and racers agree — the PLM K-Series Sidewinder Turbo Manifold offers the best value on the market today. Dyno proven to support 700+ horsepower and 10-second quarter-mile passes, this manifold is built for serious performance.

The PLM Private Label Mfg. Power Driven T3 Sidewinder Turbo Manifold for K-Series engines is designed to spool large turbos quickly, delivering massive midrange gains that carry strong through redline. Perfect for high-power builds where huge torque, fast spool, and maximum durability are essential.

Designed to fit every Honda K-Series chassis, including K-Swapped CRX, Civic, Integra, EP3 Civics, and RSX models.

Key Features:
Made from 304 grade stainless steel
One-year limited warranty
CNC machined manifold flange
Flange thickness is 1/2 inch
Constructed from thick 8 gauge / Schedule 40 pipe
One-piece design for maximum strength
44mm wastegate flange
Surfaced flanges for a perfect seal
Fully ported low-angle merge collector
Professionally TIG welded and assembled
Surface finish is raw stainless steel
Coolant lines may need modification or rerouting depending on your setup

Installation Notes:
PLM recommends using their downpipes for easier installation
Downpipes are available for RSX and K-Swap cars
Depending on your turbo size and cylinder head, upgrading to a smaller or billet coolant housing may be necessary
