PLM Power Driven K-Swap K24 K20 Megaphone 3" V-Band Header V3

PLM Power Driven K-Swap K24 K20 Megaphone 3" V-Band Header V3

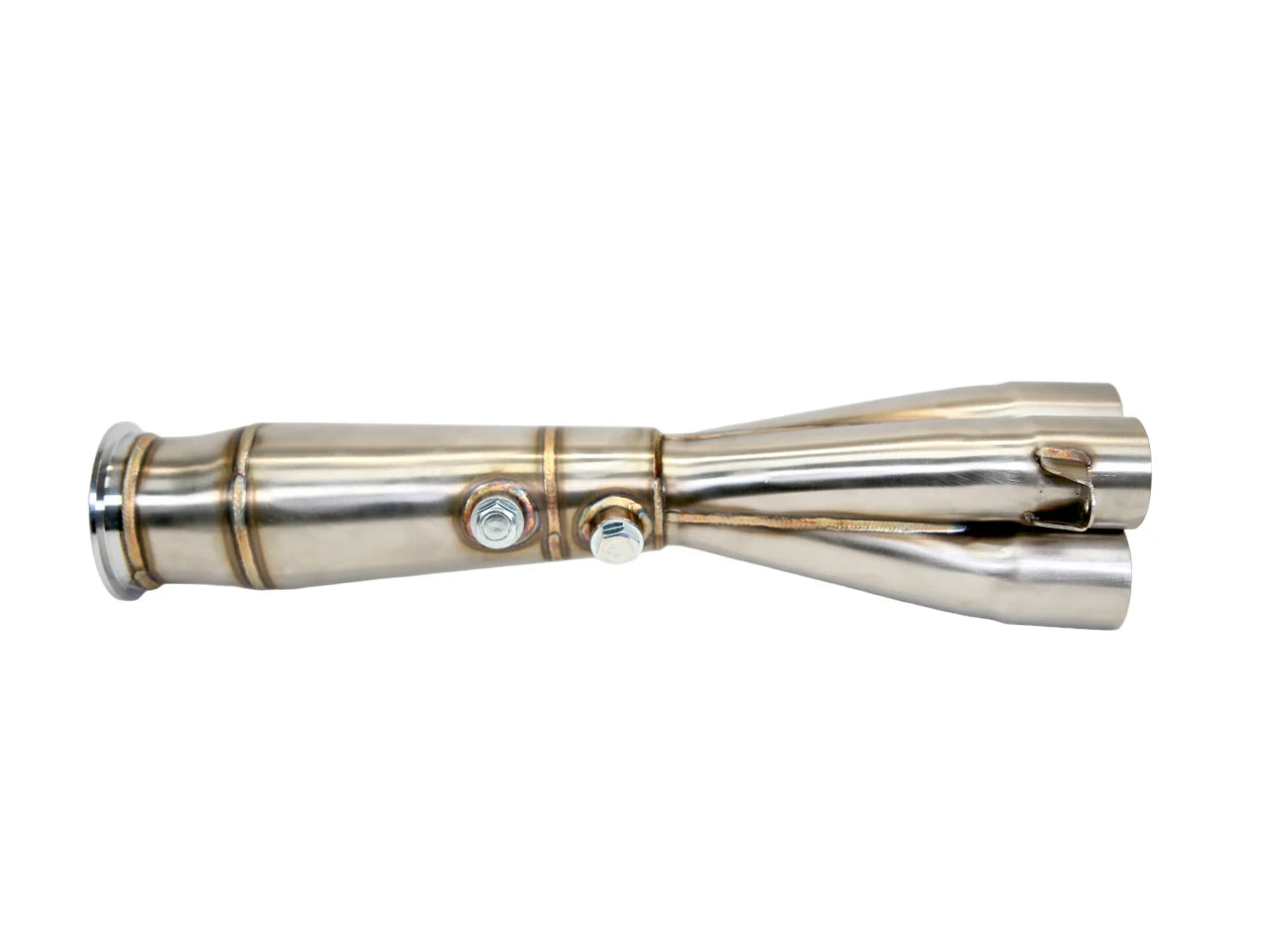

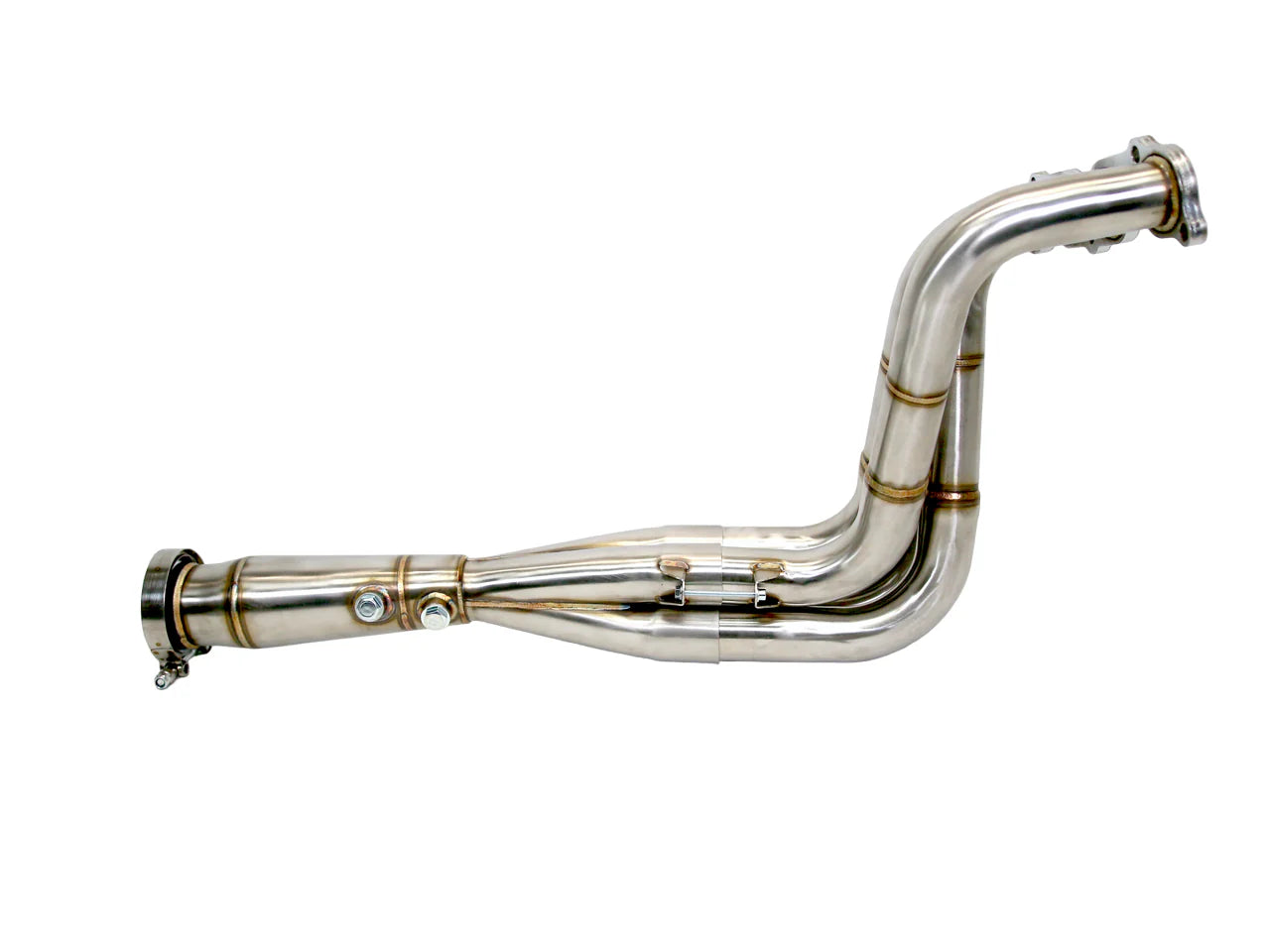

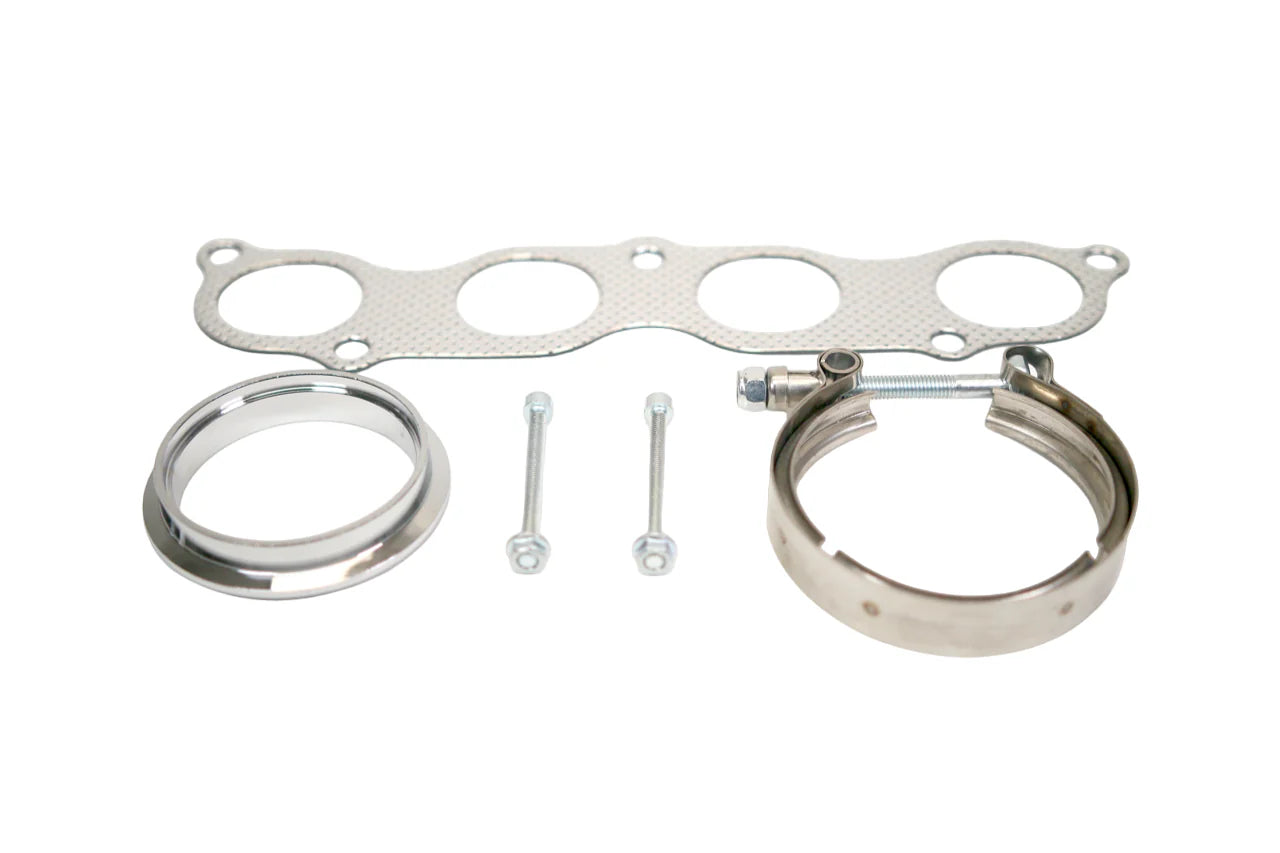

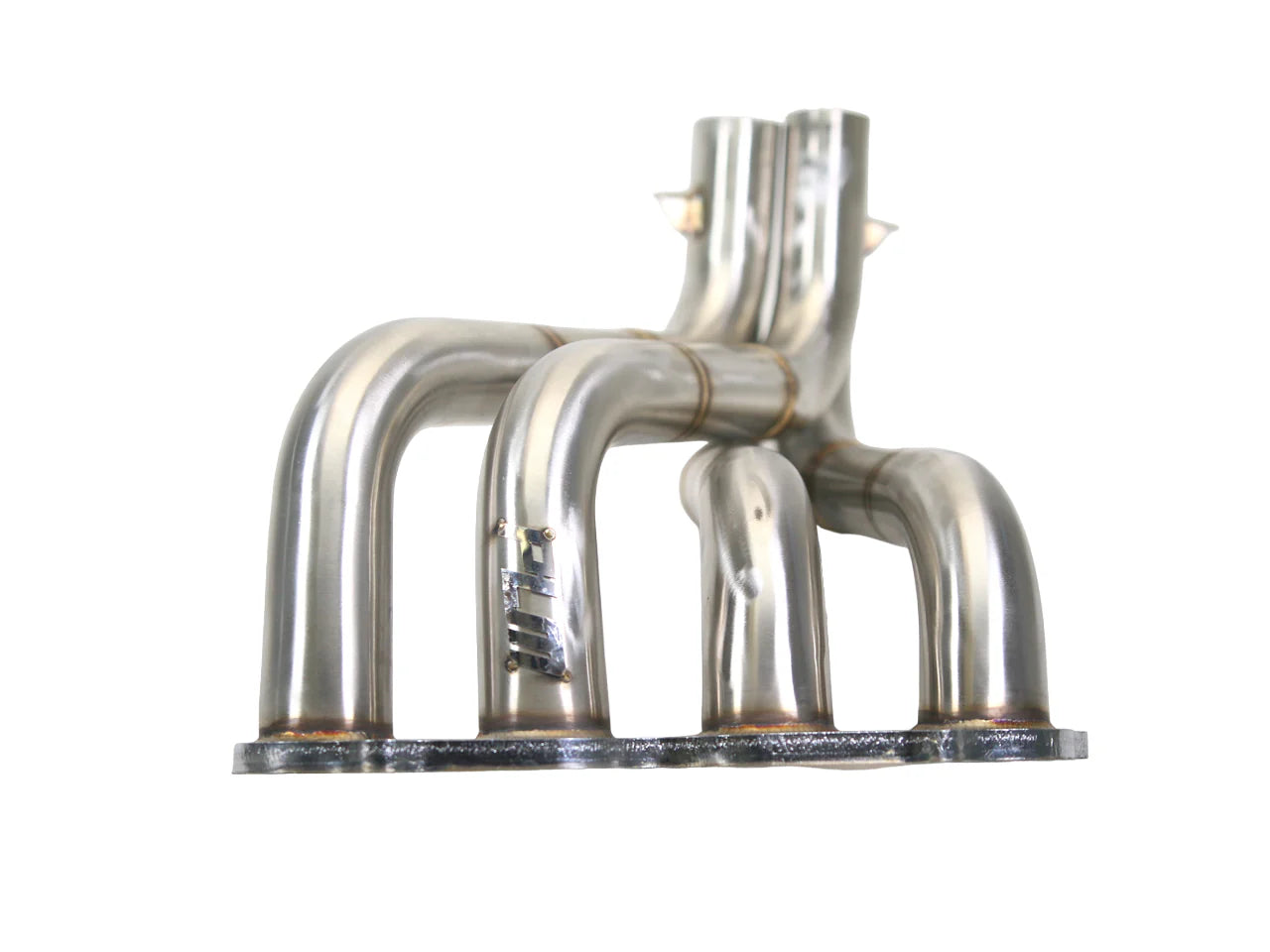

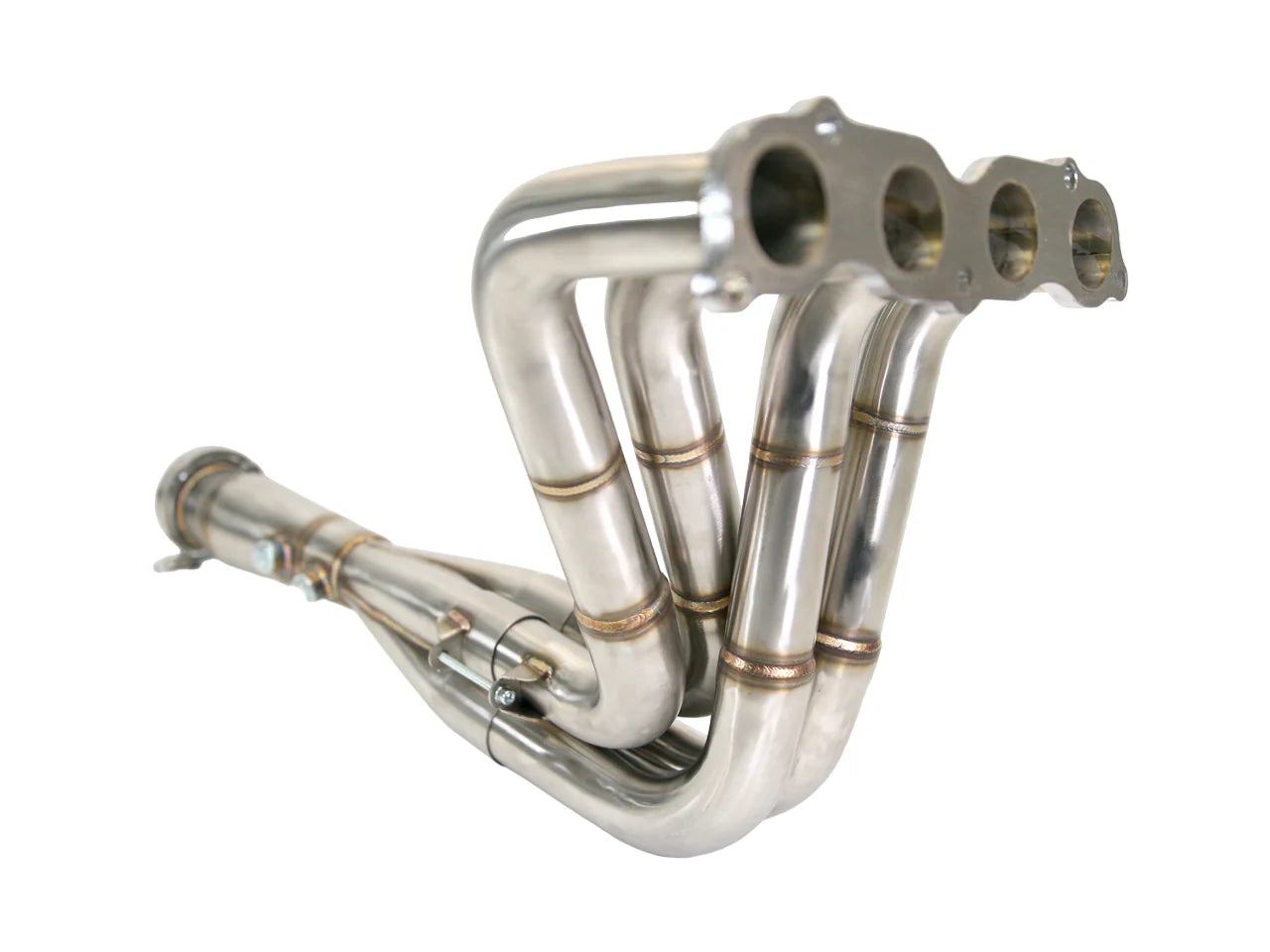

The newly released PLM K-Swap V3 Header is designed for both K24 and K20 engines, featuring a cutting-edge megaphone design with a reverse cone leading to a 3-inch V-band collector outlet. This header boasts multi-stepped tubing, smooth porting on the primaries, true mandrel bends, and a true 4-1 merge collector. It includes 3-inch V-band flanges and clamp, two O2 sensor bungs (one for wideband), and a U bracket tab for the slip-fit connection to eliminate the tension loss found in traditional spring setups.

Since 2005, PLM has been crafting industry-trusted Honda headers, and this V3 model delivers the best performance, design, and value yet.

Features:
3-inch collector outlet
Made from 304 stainless steel
One-year warranty
Long tube header design
True 4-1 merge collector
Megaphone with 3" reverse cone

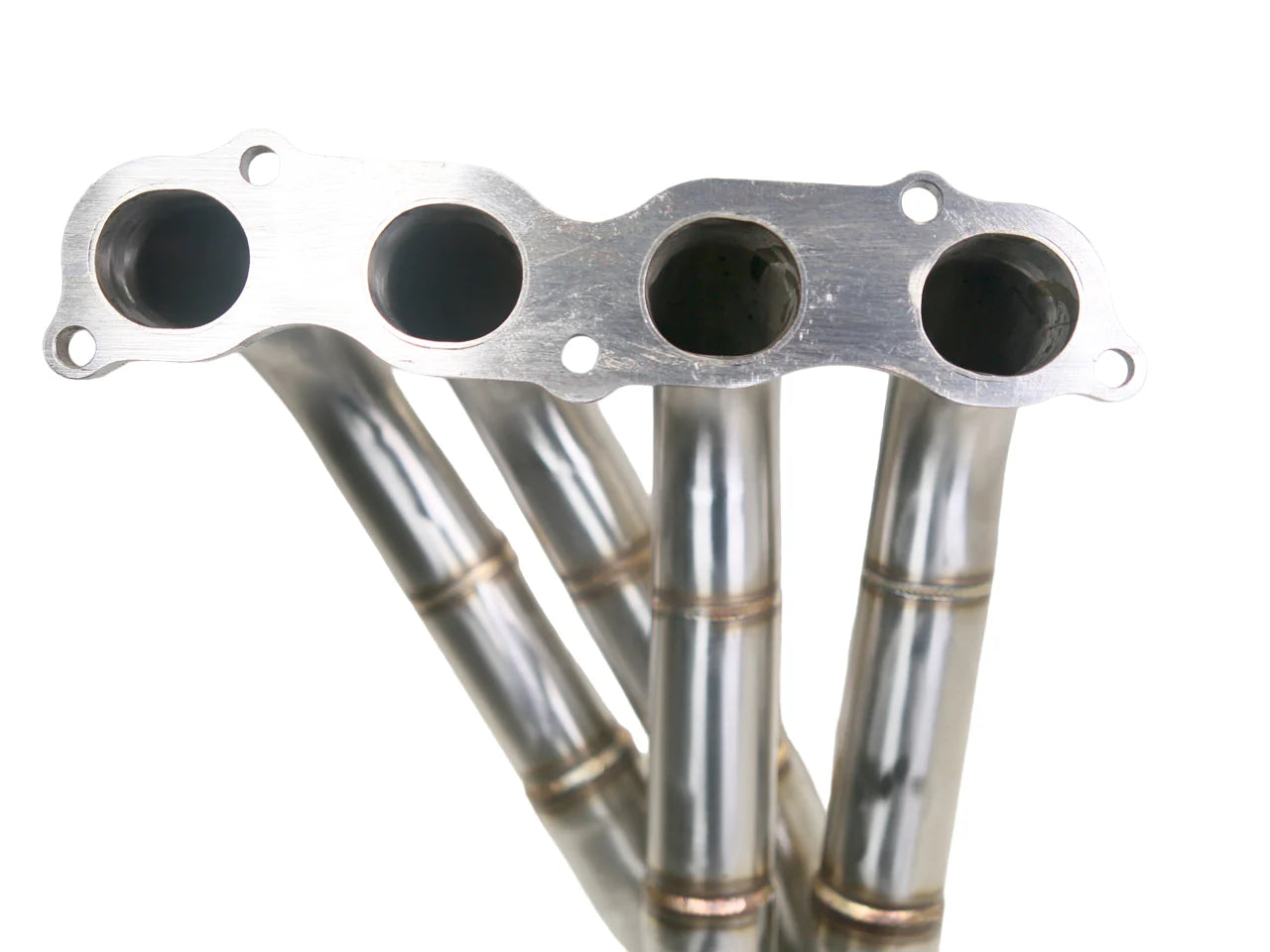

CNC machined flanges
Flange thickness is .38"
18 gauge stainless steel construction

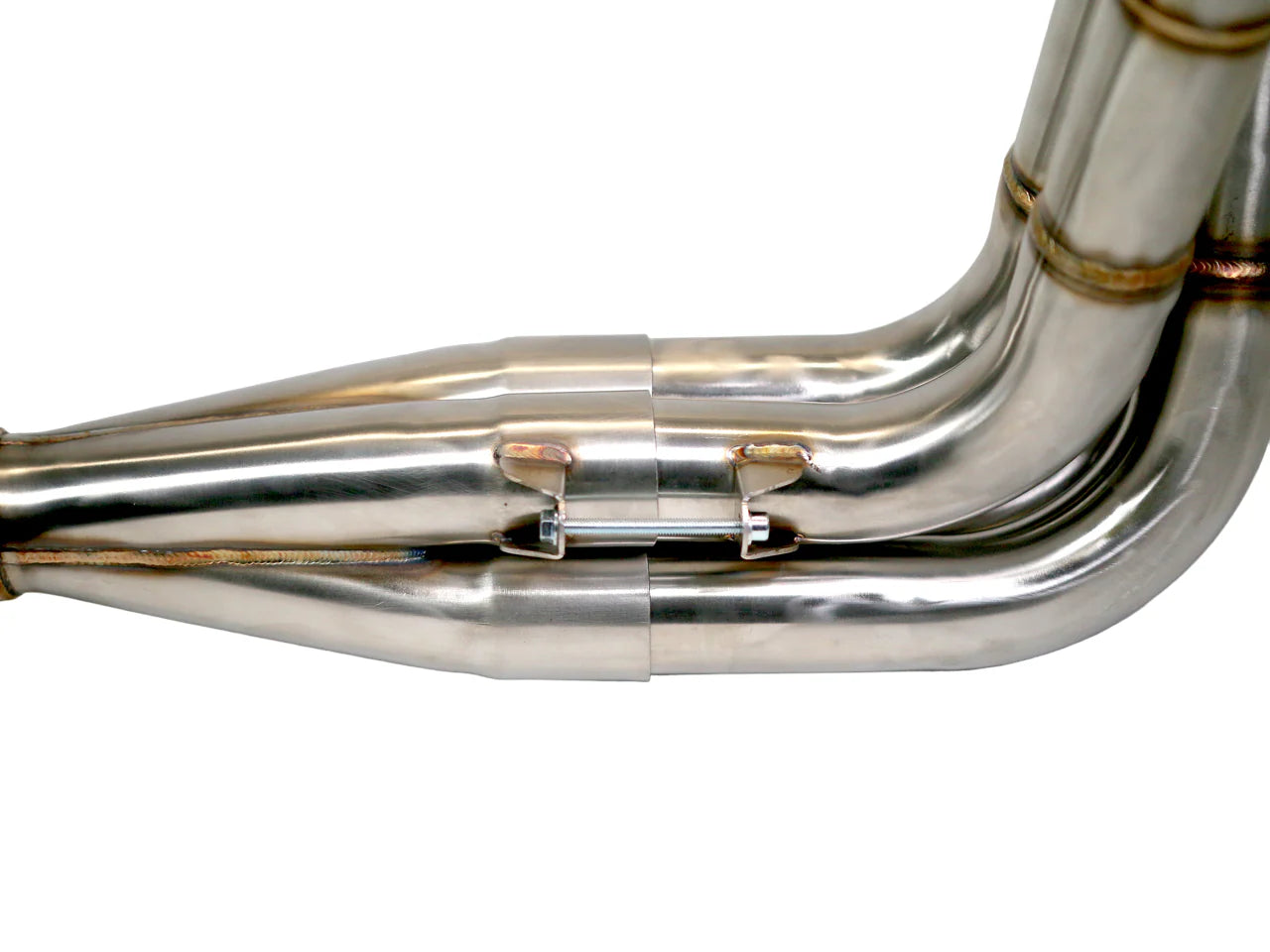

Two-piece slip-fit design with V-band flange for easy installation and quick release

Compatible Vehicles:
K-Swap K24 K-Series setups
K-Swap K20 K-Series setups
Honda Civic EG and EK (1992–2000)
Acura Integra DC2 (1994–2001)
Fitment not confirmed for CRX or EF chassis

Installation Notes:
Designed based on Precision Works engine mounts
Compatible with HASport engine mounts
Not compatible with Innovative mounts
