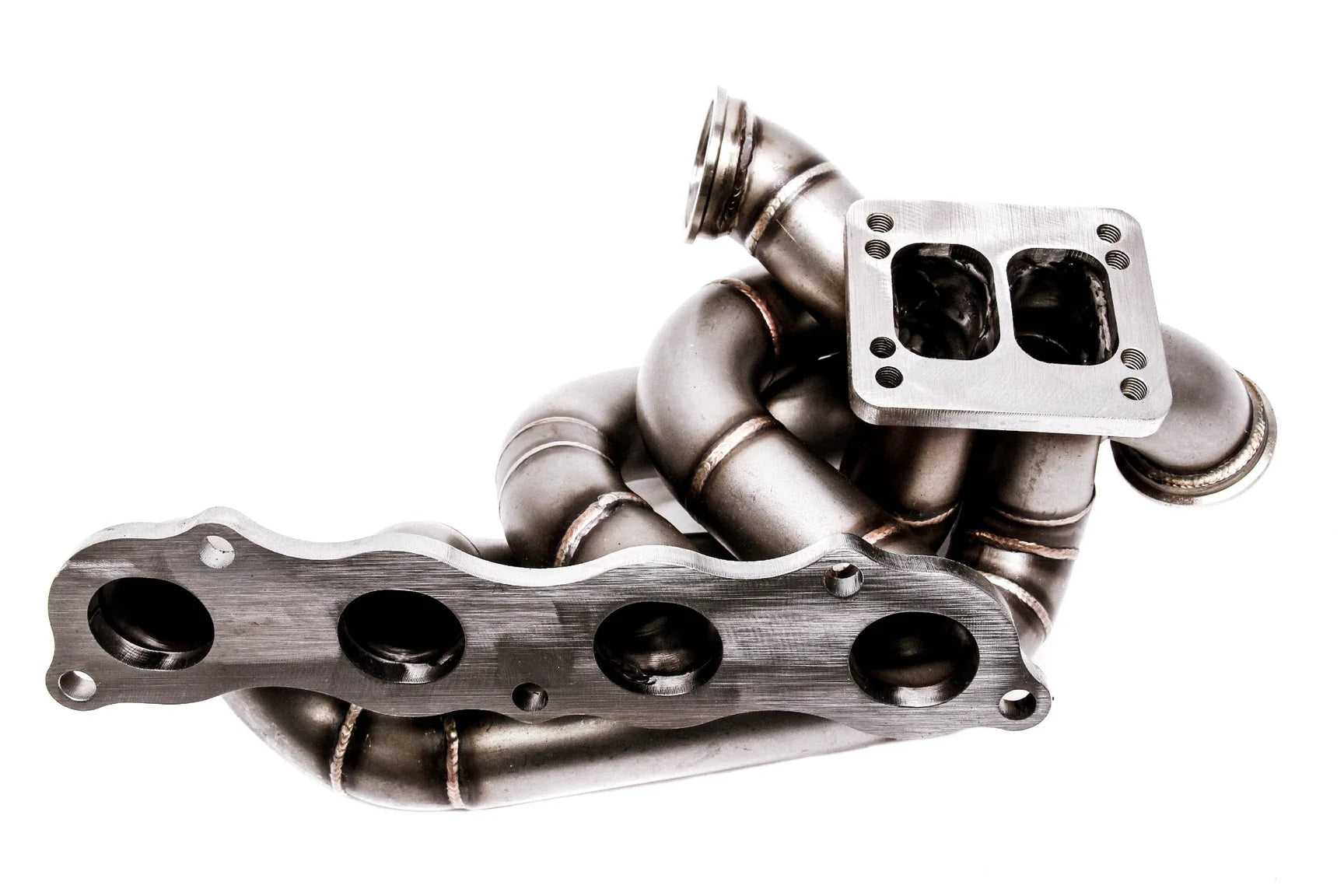

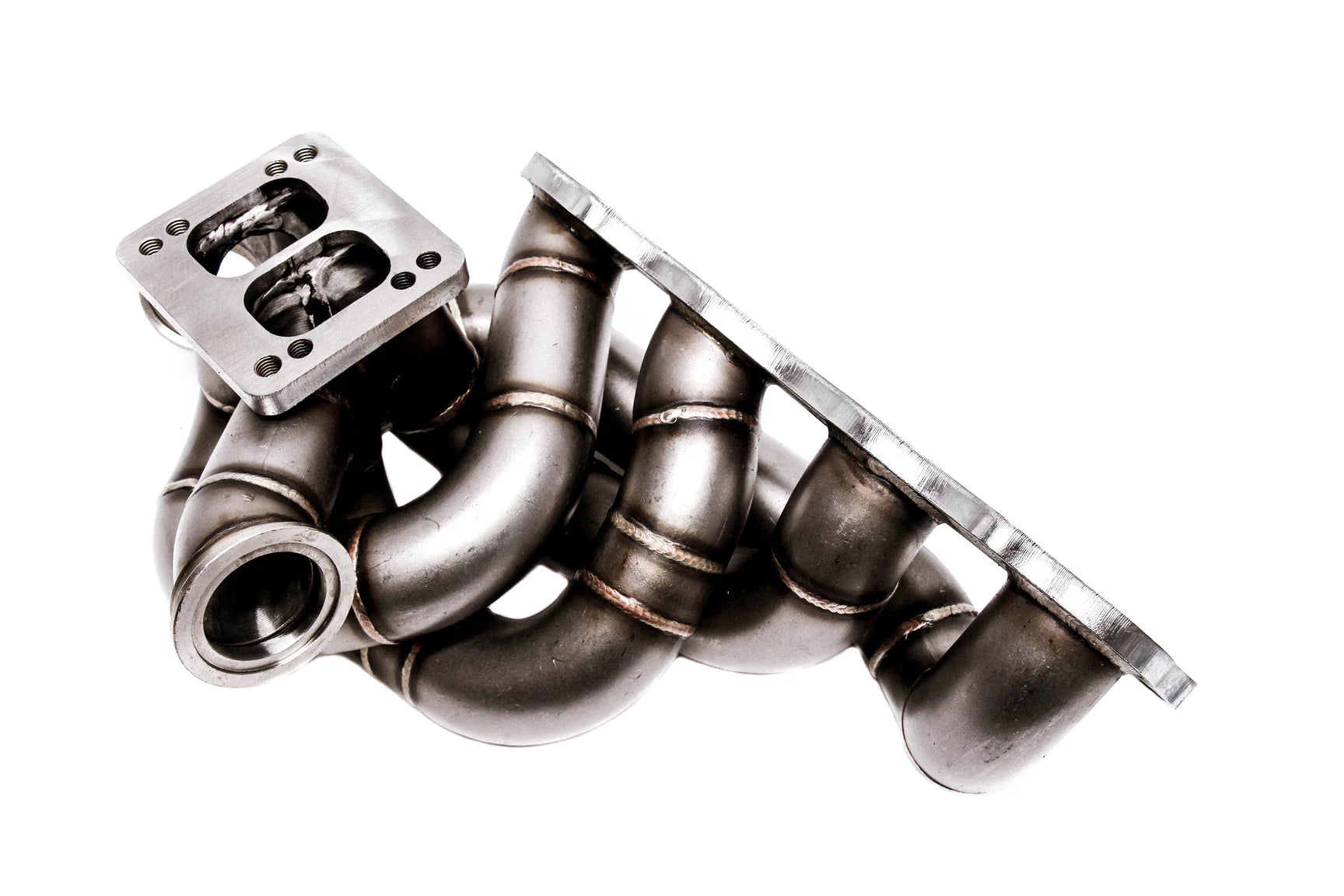

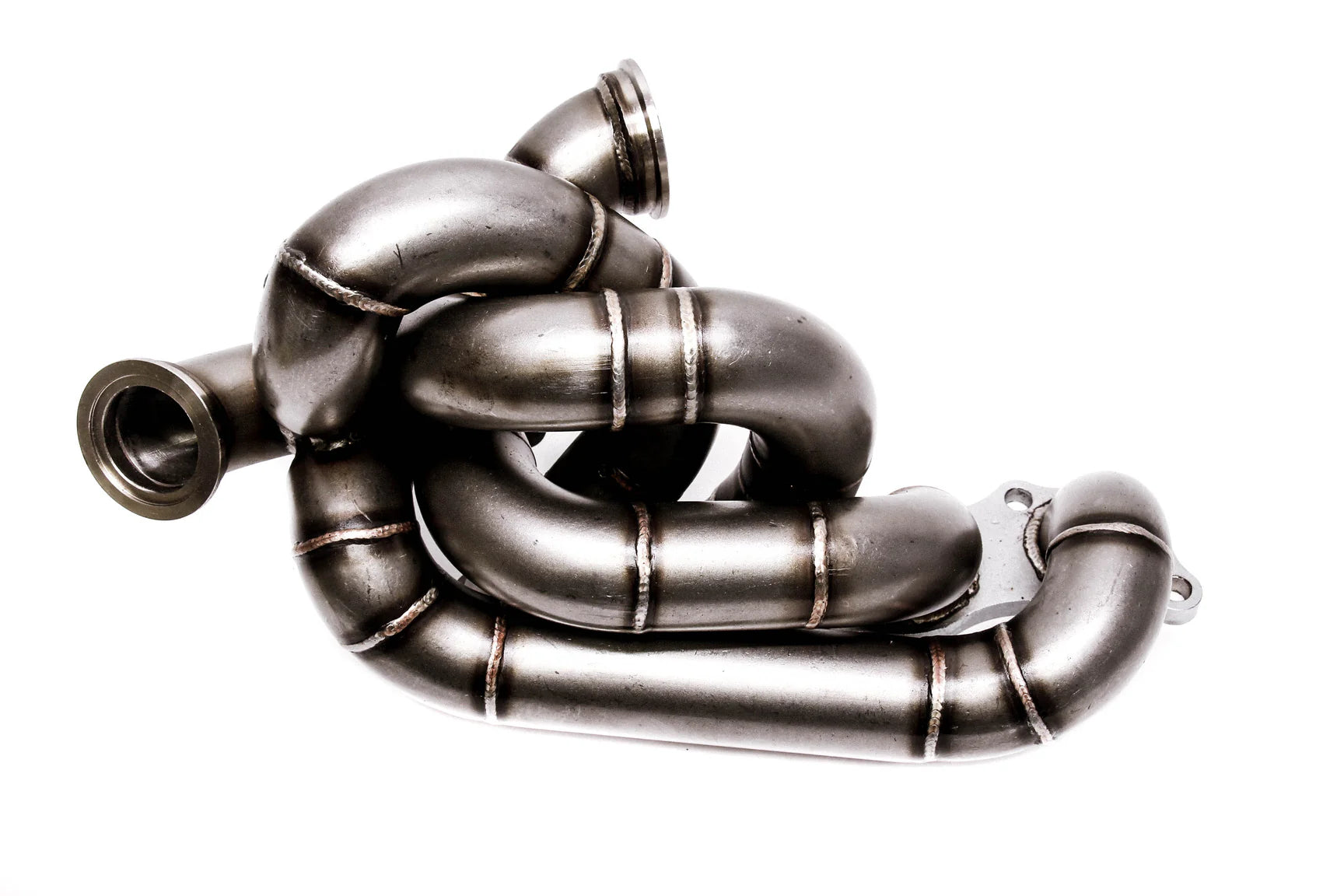

PLM Power Driven K-Series Top Mount Turbo Manifold – T3 T4 K20 K24

From the success of the PLM K-Series Sidewinder Turbo Manifolds, PLM is proud to release the Top Mount version — built for both FWD and AWD setups, supporting T3 and T4 flanged turbos, twin scroll configurations, and dual wastegates. Proven to support up to 1000HP, this manifold is race-tested and dyno-proven, hitting 700+ horsepower and 10-second quarter-mile times.

This manifold fits most Honda K-Series chassis, including K-swapped Civic and Integra models. For EP3 Civics and RSX chassis, extensive modification to the firewall and/or steering components may be required.

Key Features:
Designed for K-Series K20 and K24 engines
Compatible with AWD and FWD setups
Works with Non-Lean engine mounts
Fits both T3 and T4 turbo flanges
Dual 44mm/45mm wastegate flanges
Made from 304 grade stainless steel
CNC machined manifold flange
Flange thickness is 1/2 inch
Thick 8 gauge / Schedule 40 pipe
Fully ported and surfaced flanges for a perfect seal
True 4-1 merge collector design
Professionally TIG welded and assembled
Covered by PLM 1-year warranty against defects

Installation Notes:
Coolant lines may need to be modified or rerouted
Depending on turbo size and cylinder head, a smaller billet coolant housing may be required
Extensive modification to the firewall may be necessary for DC5 RSX, EP3 Civic, and newer Honda models
